Visual Volume control and track selector
Visual Volume and Track Selection Control
Model 1795

[]

Key Features

  • Rotary control with Visual Volume glow ring
  • Simple, intuitive control for 1703 music player
  • Volume control with mute for 1715 amplifier
  • Sturdy milled aluminum knob
  • Knob sold separately, in black or silver
  • Push function plays next track

Categories: Headphone Demo, New, Interactive Switching, Speaker Switching, User Interfaces


[Silver option]
Silver option
[Black option]
Black option
[Mounting assembly]
Mounting assembly

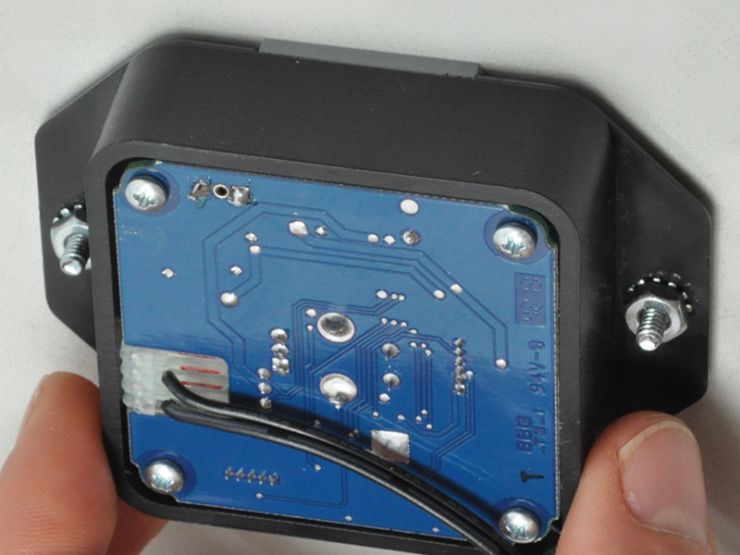

[Mounting]
Mounting

Simple Demo Controls With Visual Volume Feedback

The Visual Volume control knob provides a simple way to start music for a demo, and adjust volume on the 1703 music player, or adjust volume and mute on 1715 amplifier. In "attract mode" the glow ring emits a slow pulse, quietly inviting shoppers to interact with the display. As soon as they turn the knob, or press it to play music, the glow ring emits light to show the volume level. The glow ring brightens as the volume increases.


Features

  • Knob milled from solid aluminum, includes hex key
  • Knobs available in black (pn: 670-362) or silver finish (pn: 670-363)
  • Designed to perform in tough retail environments
  • Works with the Model 1703 music player



    See Visual Volume in Action

    The 1795 control knob has a glow ring that attracts customers to your display. Push to play music on the 1703 player (sold separately), turn to adjust volume.

    visualvolume_thumb260




      Specifications

      • RS-485 communication with 1703 or 1715 control port
      • Knob dimensions: 35mm diameter, 15mm high
      • Shaft diameter: .239" (6mm)
      • Opening in fixture can be 1.75" (45mm) to 2.25" (57mm)
      • Two mounting holes, 3 inches on center
