MediaHub with BrightSign Built-In

Multi-Purpose MediaHub - BrightSign Built-in

Model MH3-S5

BrightSign® digital signage module
4096x2160@30Hz with discrete digital and analog audio
CEC control via HDMI port
Eight ports for push-buttons or sensors
Connect touch screen, touch panel, or volume knob
Network port for updates and control

Categories: Media Players, Modules, Interactive Switching, Ascentic

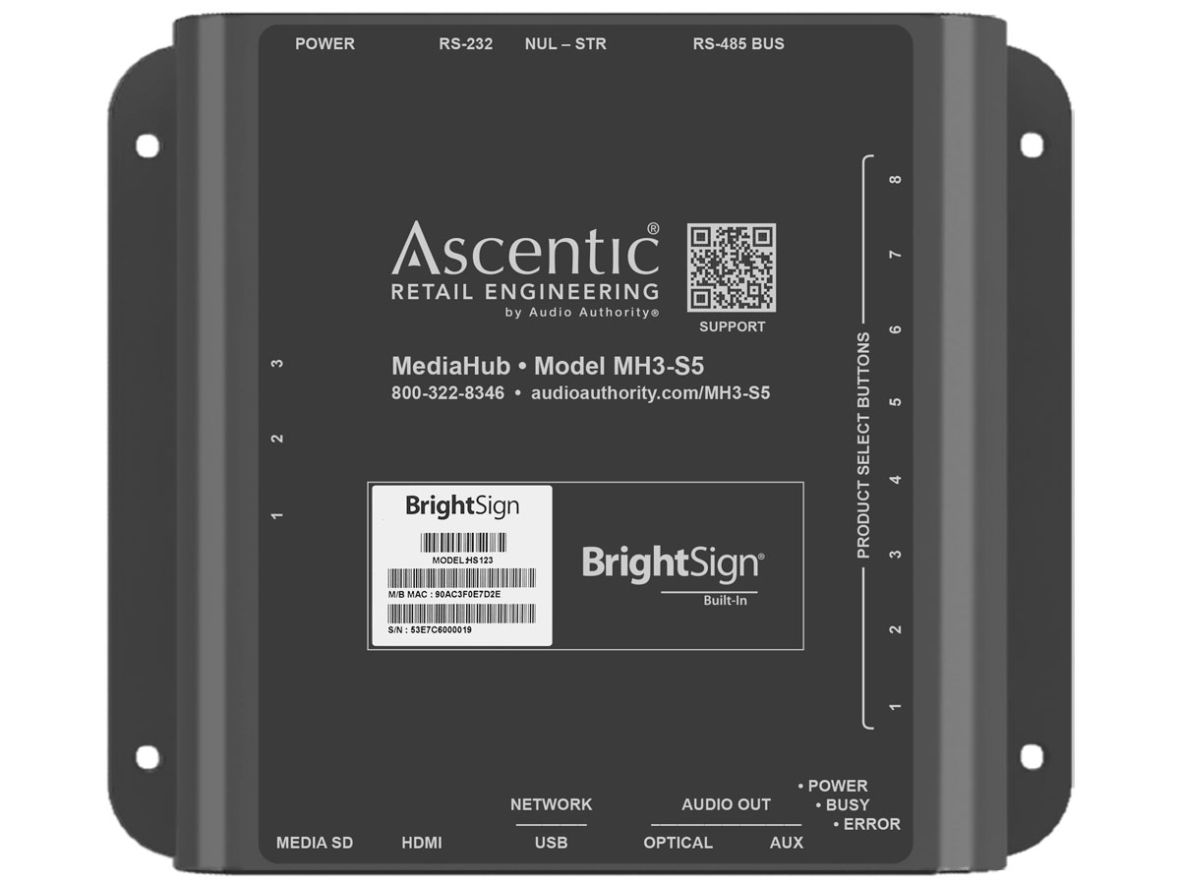

Top panel

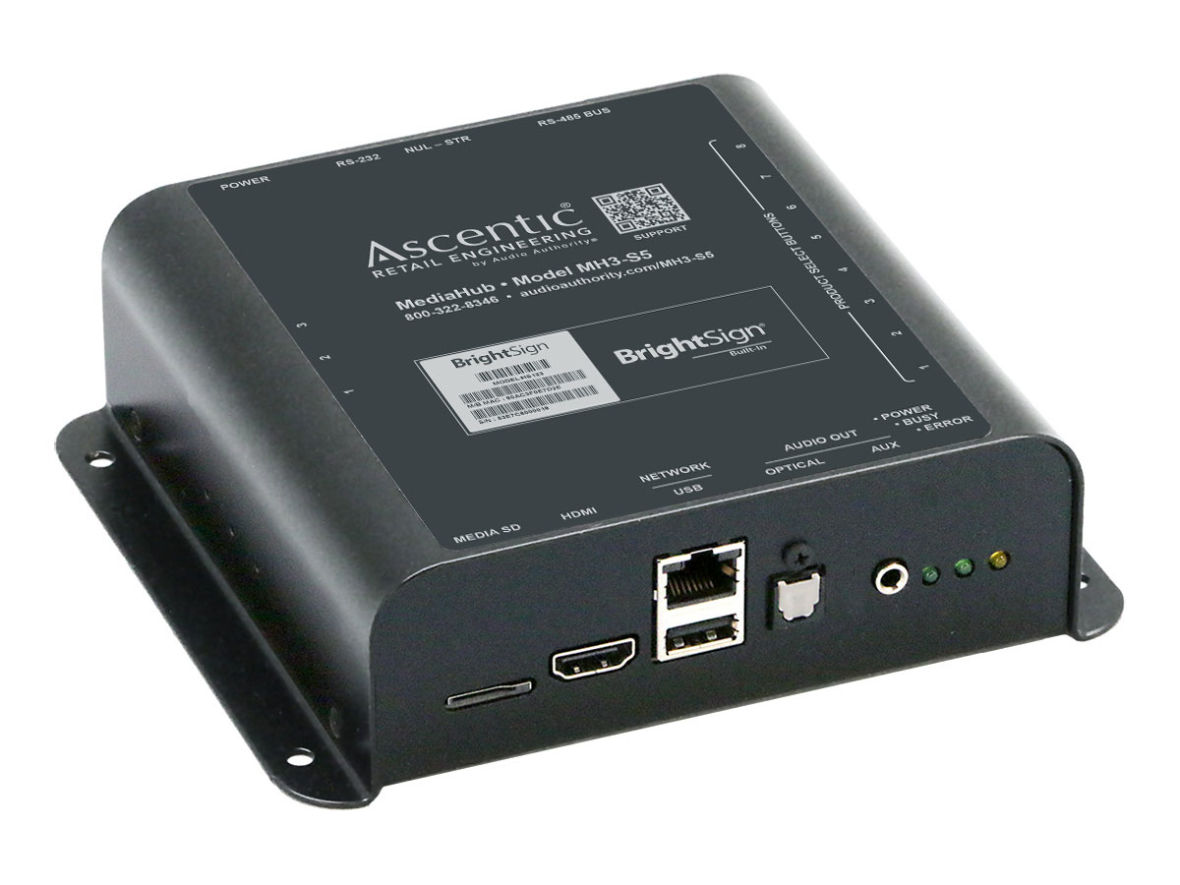

Front panel
Rear panel
Side panel

Interactive HD Demonstrator

The Model MH3-S5 combines BrightSign’s media-playing muscle with the interactivity you expect from Audio Authority®. With a BrightSign digital signage module built-in, the MH3-S5 produces flawless 4K@30 video and uncompressed audio, with all the custom capabilities made possible by BrightAuthor software.

Extensive inputs and outputs on the MH3-S5 provide many ways to interact – eight ports for push-buttons or sensors and three serial ports for external control devices including touchscreens and touch panels. Assign behaviors to any control – transport controls, product selection or other custom commands. Media and BrightAuthor programming may be updated via network.

Audio-video MediaHub with Integral BrightSign® player
Video output: 4096x2160@30Hz and digital audio (HDMI)
CEC control (HDMI port)
Discrete digital and analog audio outputs (optical and 3.5mm)
Programmable push-button ports (RJ9 x8)
Control ports for peripherals (RJ45 x3)
USB port for touch screen or other device
Ethernet port for remote updates and control

Application Example:

Digital and Analog Headphones with Video This display leverages the MH3-S5 Media Hub’s multiple audio output options to demonstrate a variety of products. The audio output jacks can play either digital or analog audio, depending on the requirements of the device. The HDMI output interfaces with a 4K TV that informs the customer about each product. Eight AirSelect touchless sensors provide an intuitve and inviting way to select each product.

MH3-4K Specifications

Audio Formats: MP3 (mono or stereo) @ 44.4kHz or 48kHz, WAV (mono or stereo) @ 96kHz, 48kHz, or 44.1kHz
Video Formats: MP4 and MOV (without metadata) with AAC or AC3 audio (pass-thru)
Video Codecs: H.265, H.264 (MPEG-4, Part 10), MPEG-2, MPEG-1
Extended compatibility with the latest Ascentic peripherals
Dimensions (HxWxD, inches): 5.4 x 5.2 x 1.8
Communication: USB-A, RS-485 control ports (x2), RS-232 port (Baud rate is software selected), Ethernet
SD or SDHC media card
Power Supply: 12V DC, 5A

More BrightSign Information:
The MH3-S5 Media Hub is powered by the HS145 (Series 5) BrightSign Module, which conforms to the HD5 consumer module. Information about video formats and codecs for this module can be found at: https://docs.brightsign.biz/advanced/video-formats-and-codecs#xd5-hd5-ls5
.

.
