[Image for MH6-4K]
MediaHub with BrightSign Built-In
MediaHub with Extended Audio - BrightSign
Model MH6-4K

  • BrightSign® digital signage module
  • 4096x2160@60Hz video, digital and analog audio
  • CEC control via HDMI port
  • Eight push-button ports
  • Multiple control ports for peripherals
  • Network port for updates and control

Categories: Media Players, Modules, Interactive Switching, Ascentic, Soundbars

[Top panel]
Top panel
[Front panel]
Front panel
[Rear panel]

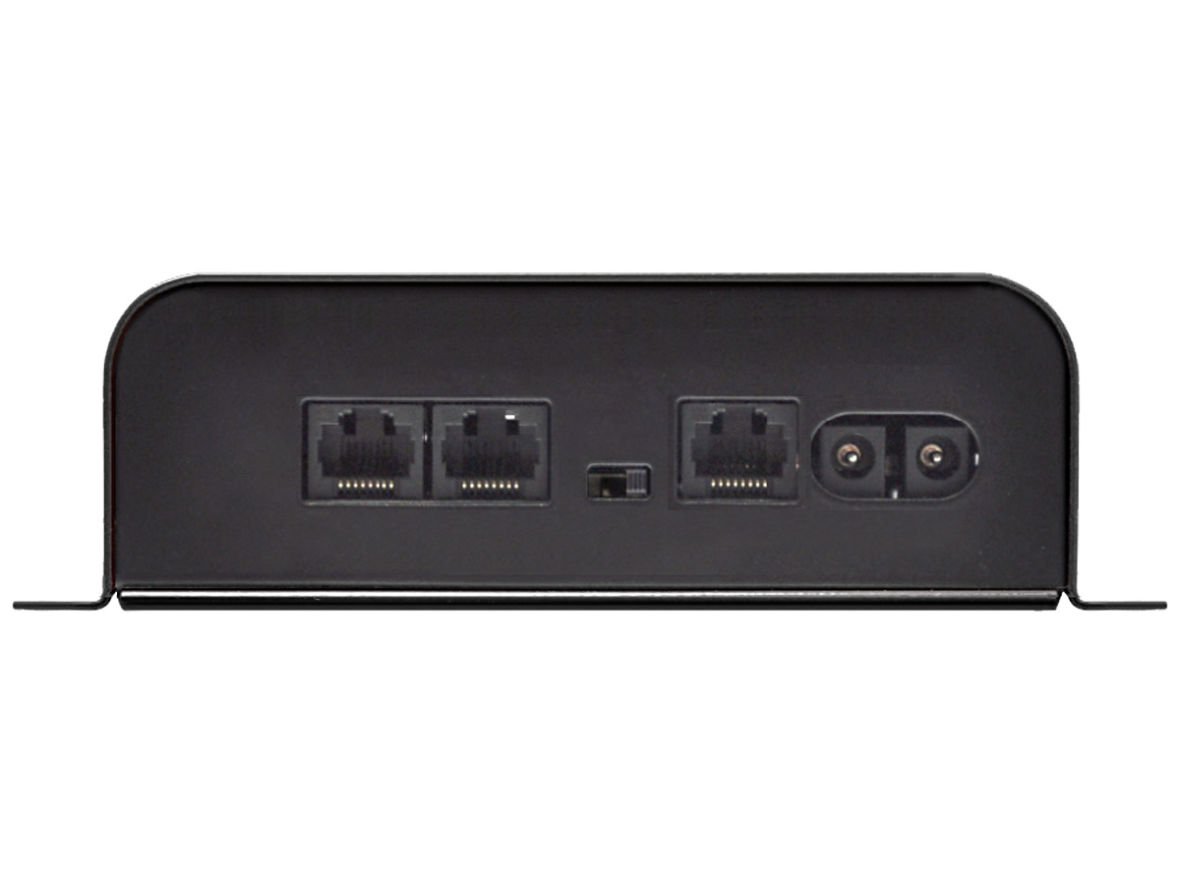

Rear panel
[Side panel]
Side panel

A MediaHub with a Focus on Audio

We combine interactivity with audio switching and distribution in the MH6-4K MediaHub. With a BrightSign digital signage module built-in, the MH6-4K produces flawless 4K@60 video and uncompressed audio, with all the custom capabilities made possible by BrightAuthor software. In addition to digital audio on the HDMI output, this audio-oriented design offers digital or analog audio on each of its four audio outputs. The audio bus output can be used to add other audio components to the system.

Multiple ports on the MH6-4K link interactive peripherals like push-buttons and serial control devices including touch screens and touch panels to serve a variety of demonstration designs. To keep presentations fresh in the field, update media content and BrightAuthor programming via Ethernet.

  • Audio-video player / audio demonstrator with integral BrightSign® digital signage module
  • Video output: 4096x2160@60Hz and digital audio (HDMI)
  • CEC control (HDMI)
  • Digital / analog audio outputs (combination 3.5mm jacks x4)

  • Audio bus (digital / analog audio combination 3.5mm)
  • Programmable push-button ports (RJ9 x8)

  • Control ports for peripherals (RJ45 x 3)

  • USB port for touch screen or other device

  • Ethernet port for remote updates


mart Speakers and Sound Docks

This audio display also uses light to attract and communicate, and leverages the MH6-4K MediaHub’s multiple audio output options to demonstrate a variety of products. Each of the four audio output jacks can play either digital or analog audio, depending on the requirements of the device. The HDMI output and USB jack interface with a touch screen LCD that informs the customer about each product. The 1895 Visual Volume knob is an intuitve and inviting way to present volume control. It connects directly to an MH6-4K serial port. Each product is visually highlighted by a lit platform, managed by a light controller on the control bus.

Smart speakers and sound docks example


MH6-4K Specifications

  • Audio Formats: MP3 (mono or stereo) @ 44.4kHz or 48kHz, WAV (mono or stereo) @ 96kHz, 48kHz, or 44.1kHz
  • Video Formats: MP4 and MOV (without metadata) with AAC or AC3 audio (pass-thru)
  • Video Codecs: H.265, H.264 (MPEG-4, Part 10), MPEG-2, MPEG-1
  • Dimensions (HxWxD, inches):  5.4 x 5.2 x 1.8
  • Communication: USB-A, RS-485 control ports (x2), RS-232 port (Baud rate is software selected), Ethernet
  • SD or SDHC media card
  • Power Supply: 12V DC, 5A


More BrightSign Information
