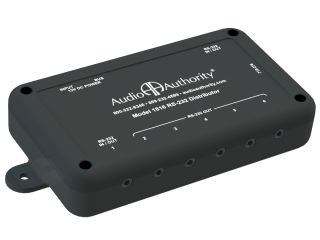

1816 RS-232 Distributor

RS-232 Distributor

Model 1816

Features:

Distributes serial commands to six devices
Feedback on one output
Compatible with BrightSign® and other devices
3.5mm serial outputs and input (null modem)
3.5mm serial input (1816)
Includes AC adapter
Also available with USB input (Model 1816-1)
1.15 x 3.25 x 6.88 inches (mounting tabs included)
Tough plastic case

Categories: Interactive Switching, Modules, Accessories

Synchronize up to Six Outputs

The Model 1816 receives RS-232 commands and echoes the data to 6 outputs simultaneously. Position 1 is also capable of receiving feedback from a connected sink device and passing

the data back to the source device.

BrightSign® Authorized Partner

Specifications:

	Model 1816	Model 1816-1
3.5mm input port (Model 1816)	Y	N
USB input: MINI-B (1816-1)	N	Y
RS-232 Outputs: 3.5mm (straight)	Y	Y
Power Input Connector: 5.5 X 2.1mm	Y	N
Power pass-through to other 12V devices	Y	N
Dimensions (HxWxD, inches): 5.63 x 3.25 x 1.15	Y	Y
Input Voltage/Polarity: 12VDC center positive	Y	N

Downloads

Literature
- 1816-1 Focus sheet 316.46 KiB Serial distributor with USB input.
- 1816 Focus sheet 324.52 KiB Serial distributor with external power and RS-232 port.
Manuals
- 1816-1 Installation Manual 303.96 KiB Serial distributor with USB input.
- 1816 Installation Manual 350.73 KiB Serial distributor.
