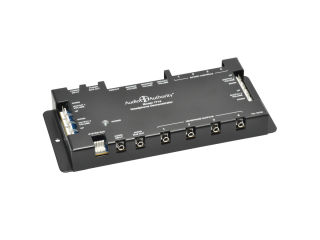

[Image for 1714]
Headphone Amp and Demonstrator
Headphone Demo Amp Individual Volume Controls 1x4
Model 1714

[]

Key Features

  • High fidelity headphone amp
  • Four headphone outputs
  • Each headphone output has volume control
  • Rotary encoder option with push to mute
  • Volume up and down push-button option
  • Adjustable volume limits and default
  • Demo timeout option
  • Cascade to increase capacity

Categories: Headphone Demo, Modules, New


[Top view]
Top view
[Without case]
Without case

A Headphone Amplifier for the Premium Demo

The 1714 offers a dedicated headphone amplifier for each of its headphone outputs, so all outputs may play at once. The 1714 allows each user to adjust volume as they audition headphones, using either volume control knobs or up/down buttons.

The 1714 allows you to design the right experience for your retail environment. Make individual demo stations of four headphones each with exclusive music selection, or make a large system that shares one music player among all headphones in the entire system.

Features

  • High fidelity headphone amplification to showcase premium headphones
  • Individual volume control for each output
  • Retail-hardened volume up and down buttons
  • Volume control knobs (rotary encoder, Model 1794) with push-to-mute functionality
  • Demonstrations can be set to time out after a few seconds, minutes, or never
  • Adjustable settings for minimum, maximum and default volume levels
  • Multiple units can easily be connected together for any size system
  • Dimensions: 8.5 x 6.5 x 1.5 (HxWxD, inches)
